Description

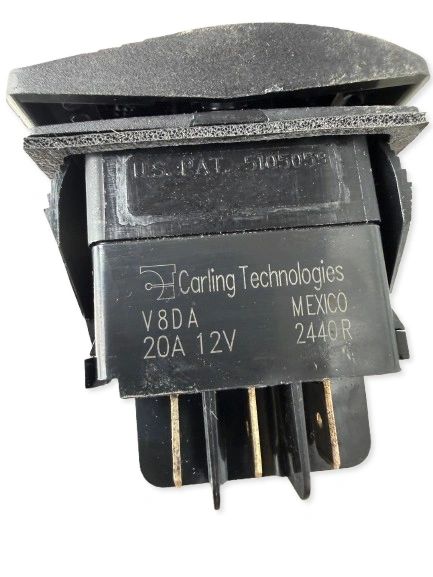

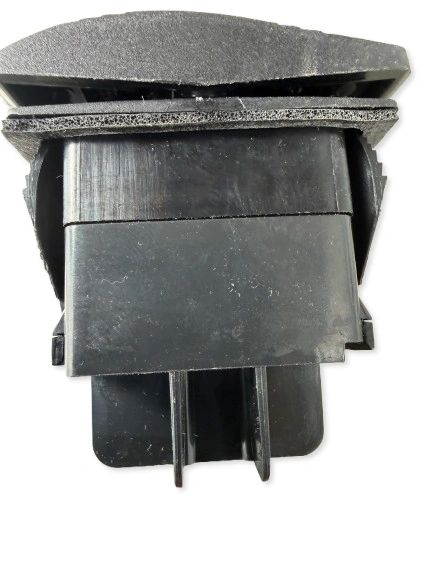

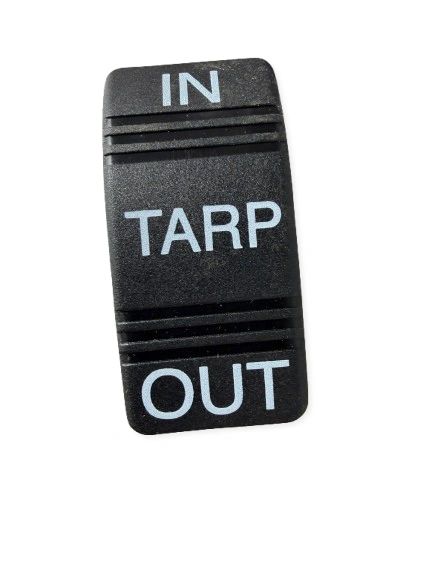

Carling Technologies V8DA Rocker Switch
The V8DA is part of Carling Technologies’ V‑Series Contura® sealed rocker switches, commonly used in marine, automotive, truck, and industrial equipment applications.
Core Function

Switch type: ON‑OFF‑ON (momentary)
Action: Momentary in both directions; the rocker returns to center OFF when released
Circuit: Typically SPDT (Single Pole, Double Throw)

This makes it ideal for things like trim tabs, winches, slide-outs, windows, actuators, or directional motor control.
Typical Electrical Specifications
(Exact ratings depend on the suffix, but these are standard for V8DA bases)

Voltage: 12 VDC (some variants support 24 VDC)
Current: Up to 20 A @ 12 VDC
Contacts: Silver-plated
Electrical life: ~50,000–100,000 cycles (load‑dependent)
Typical Electrical Specifications
(Exact ratings depend on the suffix, but these are standard for V8DA bases)
Voltage: 12 VDC (some variants support 24 VDC)
Current: Up to 20 A @ 12 VDC
Contacts: Silver-plated
Electrical life: ~50,000–100,000 cycles (load‑dependent)
