Description

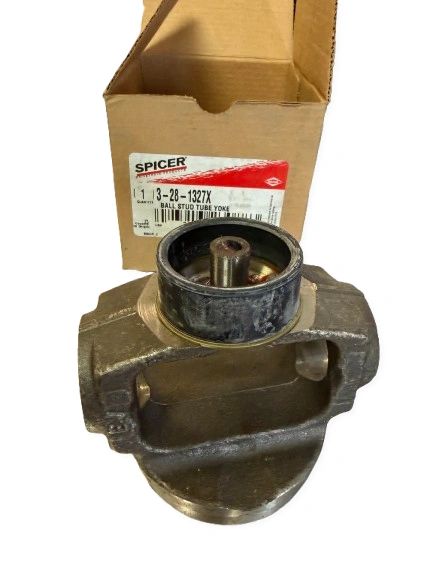

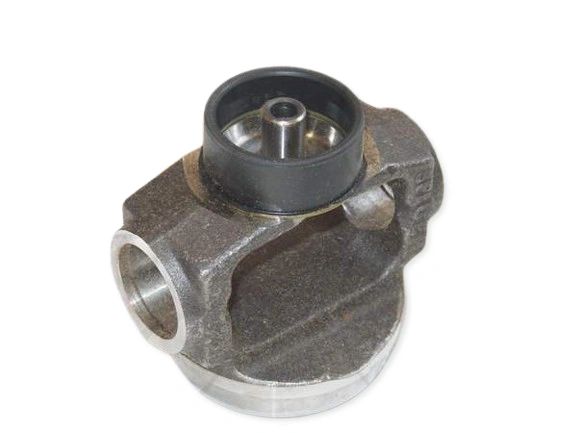

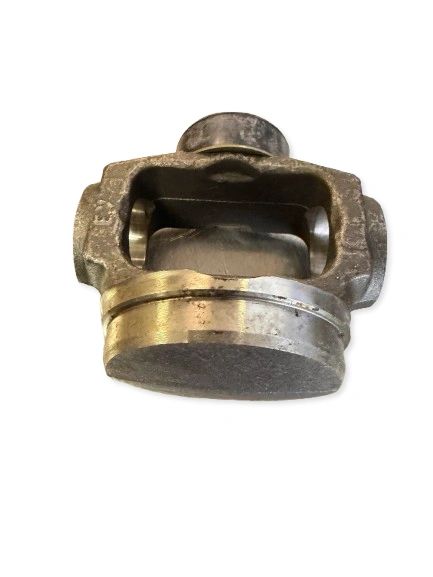

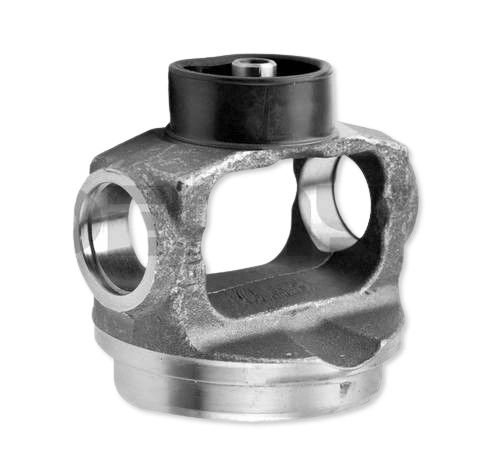

DANA SPICER 3-28-1327X CV Double Cardan Constant Velocity (CV) Ball Stud Tube Weld Yoke manufactured by Dana. It is engineered specifically for 1350 Series driveshafts to rebuild or fabricate non-greaseable CV centering assemblies on 4WD trucks and commercial vehicles.
Specifications
Driveshaft Series: 1350 Series
Tubing Fitment: Fits a 3.00-inch Outside Diameter (O.D.) steel tube with a 0.083-inch wall thickness.
Butt Diameter (F): 2.844 inches (the internal dimension fitting into the tube).
Ball Stud Diameter (H): 0.500 inches.
Ball Stud Length (L): 0.590 inches.
Centerline of Joint to Weld (K): 1.440 inches.
Centerline of Joint to End of Ball Stud (J): 1.732 inches.
Maximum Joint Angle: 13 degrees.
Cross-Reference
Meritor: 135N281327X
Neapco: N3-28-1327X / N3-28-1327-1X
