Description

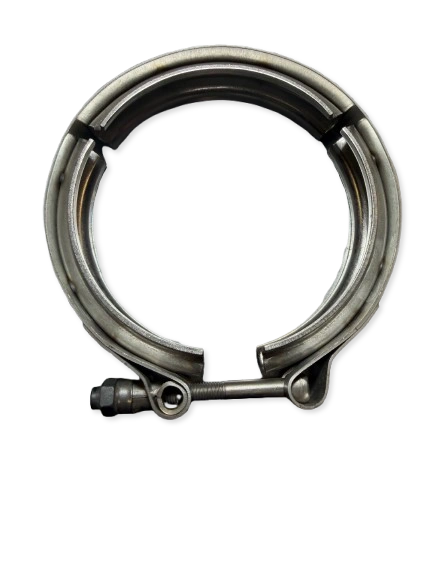

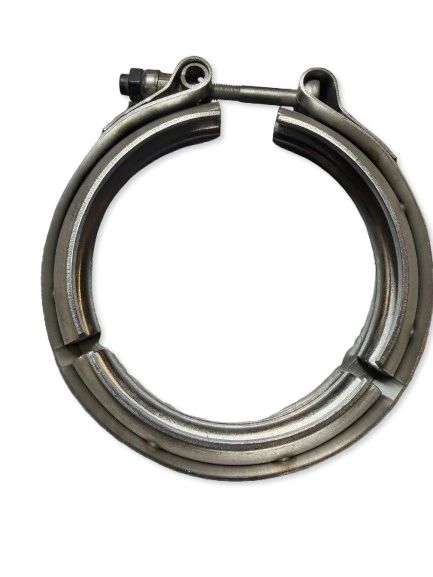

Rayon 10261‑3 Turbo Clamp
Heavy‑duty V‑band / V‑insert clamp designed for high‑pressure, high‑temperature joints such as turbochargers and exhaust connections.

Specifications
Nominal Diameter: 4.50 in (114.3 mm)
Band Width: approx. 7/8 in (22.23 mm)
Material
Band: 301 Stainless Steel
T‑Bolt: 410 Stainless Steel
Locknut: 347 Stainless Steel

Common Engine & Vehicle Applications
Used primarily on turbocharger exhaust/turbine connections and similar flanged joints on:
International / Navistar
DT466 / DT570
Maxx Force 9 & 10
Cummins
ISB / ISC / ISL
N14 (certain turbo & exhaust joints)
Detroit Diesel
Series 60 (select exhaust/turbo connections)
PACCAR
PX‑9, PX‑7 (Cummins-based)
Volvo / Mack
D11, D13, MP7, MP8 (application‑specific)
General Heavy‑Duty Uses

Turbocharger turbine outlet
Exhaust-to-turbo flange
EGR & high‑heat exhaust couplings
Insert Angle: 40°
High axial clamping force / high burst strength
