Description

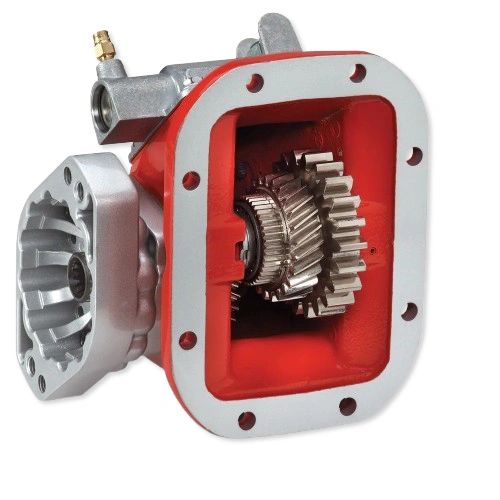

Muncie CS25‑A1005‑H3BX Power Take‑Off (PTO)
Assembly used on medium/heavy‑duty truck transmissions. Drives hydraulic pumps (dump beds, tow trucks, refuse trucks, etc.)
Specifications
Series: CS25 (Clutch‑shift PTO)
Shift type: Clutch‑shift (wet clutch, solenoid‑activated)
Max torque: ~325 lb‑ft intermittent / 228 lb‑ft continuous
Max HP: ~62 HP @ 1000 RPM
Weight: ~52 lbs
Mounting: SAE “A”, “B”, “BB” pump mounts available
Output options: Multiple shaft/flange configs (varies by suffix like H3BX)
Applications
Dump trucks
Tow trucks / wreckers
Refuse trucks
Tankers & utility trucks
