Description
MUNCIE: CD10‑A1005‑M1ZG

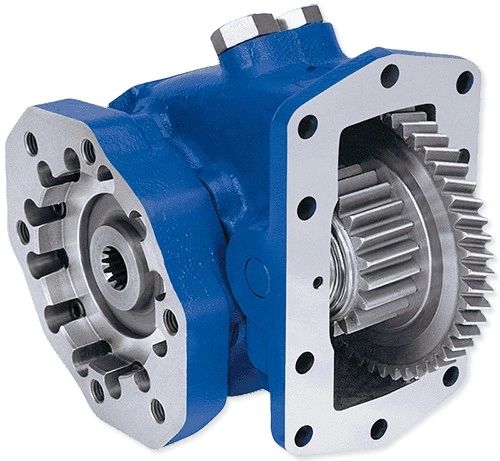

Muncie CD10 Series PTO (Power Take-Off)
Designed for Allison automatic transmissions
Constant drive (non‑shiftable) PTO used to power hydraulic pumps
Key Specifications (for CD10‑A1005‑M1ZG)
Gear Ratio: 0.55:1
PTO Type: Constant drive (CD)
Torque Capacity: Up to 400 lb‑ft (intermittent)
Horsepower: Up to 76 HP @ 1000 RPM
Mounting: Allison transmission PTO opening
Assembly Arrangement: Right side / shaft low
Key Specifications (for CD10‑A1005‑M1ZG)
Model Code Breakdown (what it means)
CD10 – A1005 – M1ZG
CD10 = Constant Drive series PTO
A1005 = Input gear set (gives the 0.55 ratio)
M1 = Assembly arrangement (mounting position/orientation)
Z = Output configuration (SAE B flange + SAE C shaft style)
G = Special feature (greaseable output)
Typical Applications
Dump trucks
Refuse trucks
Hydraulics (wet kits, hoists, pumps)
Utility/service bodies
