Description
FMSI: 4702D / 4702Q
Brake Diameter: 15.0 in
Brake Shoe Width: 4.0 in
Load Rating (typical lining): 20,000 lb GAWR
Application: Meritor Q Plus 15″ × 4″ S-Cam brake systems
Common Cross References
Haldex: GR4702QN
Meritor: SR2064702QP
Stemco: NS-4702Q
Wagner: ANA4702Q
Typical Shipping Dimensions (boxed shoe set with hardware)
Length: 15.5 in
Width: 12.5 in
Height: 7.1 in
Shipping Weight: 38.1 lb (reman kit)

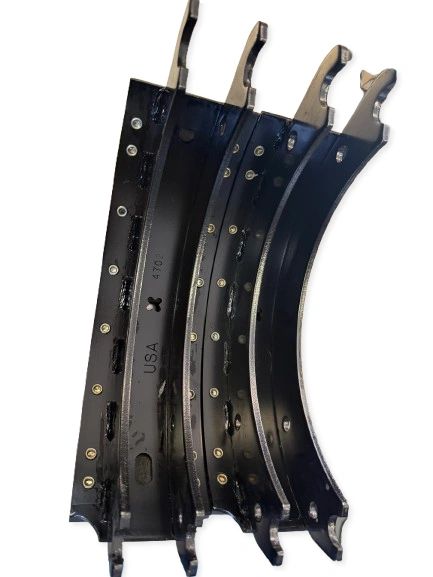

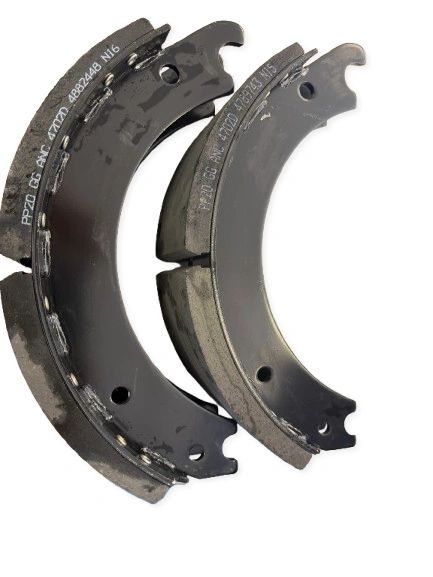

4702D Brake Shoe, 15″ × 4″, Meritor Q Plus, 20K GAWR
