Description

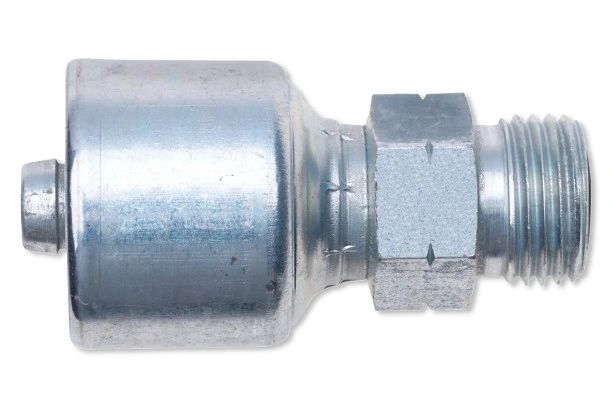

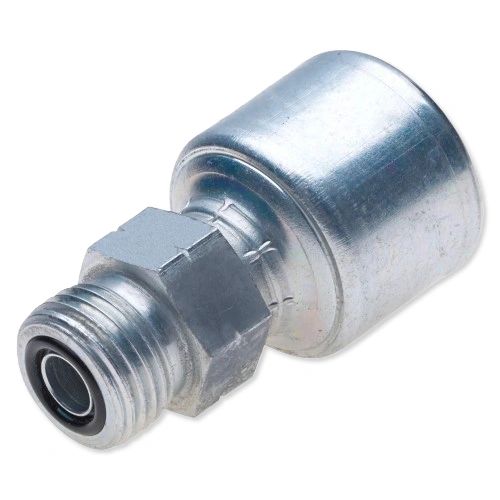

G252250‑0404 (often written G25225‑0404) is a Gates MegaCrimp hydraulic hose coupling.
Description
Type: Male flat‑face O‑ring hydraulic coupling
Seal: Flat‑face O‑ring (SAE J1453)
Application: Crimp‑on fitting for Gates wire‑braid hydraulic hose
Design: Straight, non‑swivel
Crimp System: Gates Mega Crimp (bite‑the‑wire design)
Key Specifications
Hose I.D.: 1/4 in (‑04 size)
Thread: 9/16‑18 UNF
Aeroquip: 1AA4MR4
Parker: 1J043‑04‑04 / 1JM43‑04‑04
Weather head: 04UE64
Eaton: 04Z‑E64
Goodyear: 14730‑0404
Dayco: 101583
Thread Gender: Male

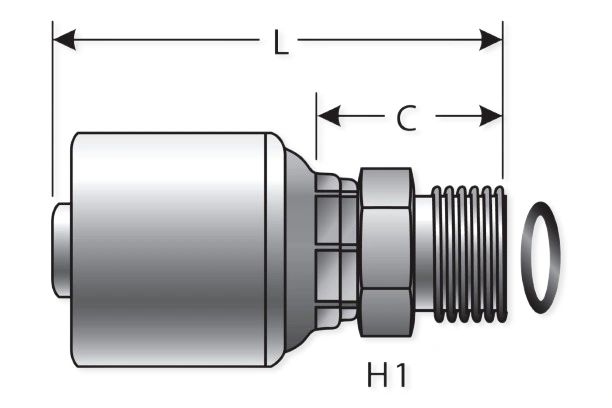

Overall Length: ~2.07 in (52.5 mm)
Cut‑off Length: ~1.04 in
Hex Size: 17 mm
Angle: Straight (0°)
Swivel: No
