Description

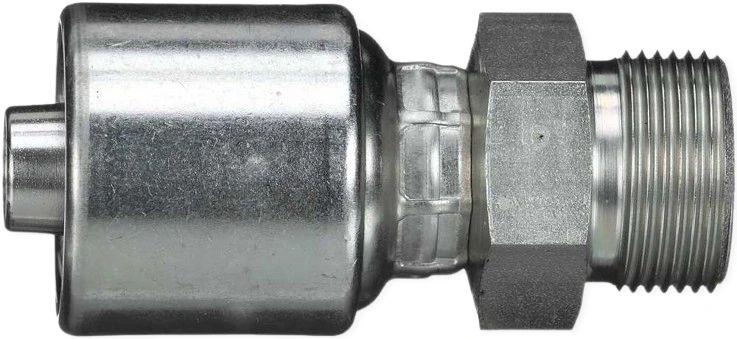

Coupling Description MegaCrimp Male DIN 24 Cone – Heavy Series
Industrial Description 6G-12MDH
Thread Size M20X1.5
Inside Diameter .375 in
Inside Diameter 9.5 mm
Hydraulic Hose Recommendation Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
Outside Diameter 12 mm
Stem Hex Size 24 mm
Cut-Off Length 1.17 in
Cut-Off Length 29.6 mm
Length 2.26 in
Length 57.5 mm
Seal Type Mated Angle w/O-Ring
Termination DIN
O-Ring Location On Female w/Inverted Nose Seat
Seat Angle 24
DIN Series Heavy
Gender Male
Bent Tube Angle Straight
Swivel No
UPC 072053206500
