Description

California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Vehicle Fitment (common applications)
Fits heavy-duty GM trucks:

Chevy Silverado 3500 (2001–2007)
Chevy Silverado 3500 HD (2007–2010)
GMC Sierra 3500 (2001–2006)
GMC Sierra 3500 HD (2007–2010)
Classic models in 2007 included
Cross References

FMSI: D909 [brakes-shop.com]
Raybestos: ATD909C, SGD909C, etc. [finditparts.com]
Brake Pro: BKP909MH
👉 Always confirm by VIN or exact model (cab/engine/brake package) because 3500 trucks can vary
Weight [cntrc] Lbs 7.05
Product Grade [cntrc] Fleet
Hardware Kit Number [cntrc] 117.66016
Weight [cntrc] Kgs 3.2
Notes01 [cntrc] 4 Pads with 2 Wear Sensors
Pad Wear Sensor Included Yes
Friction Material Composition Semi-Metallic
Mounting Hardware Included Yes
Pad Shims Included Yes
Friction Material Attachment Integrally Molded
Pad Quantity 4
Prepared For Pad Wear Sensor Yes

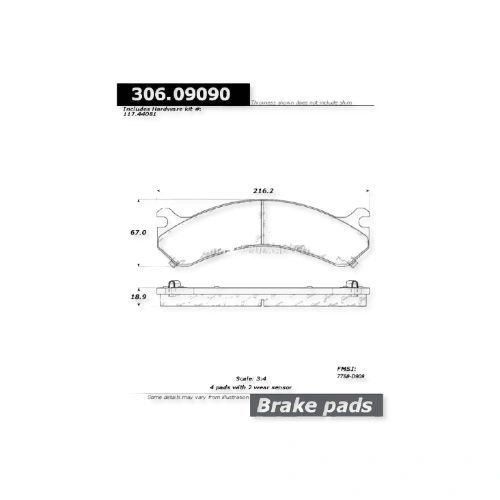

Outer Pad Height 67.000 MM
Outer Pad Height 2.638 IN
Inner Pad Height 67.000 MM
Inner Pad Height 2.638 in
Outer Pad Width 216.200 MM
Outer Pad Width 8.512 IN
Inner Pad Width 216.200 MM
Inner Pad Width 8.512 in
Outer Pad Overall Thickness 18.900 MM
Outer Pad Overall Thickness 0.744 in
Inner Pad Overall Thickness 18.900 MM
Inner Pad Overall Thickness 0.744 IN
Additional Information
Harmonized Tariff Code (HTS) 8708305090
NAFTA Preference Criterion Code B
Country of Origin (Primary) TW
