Description

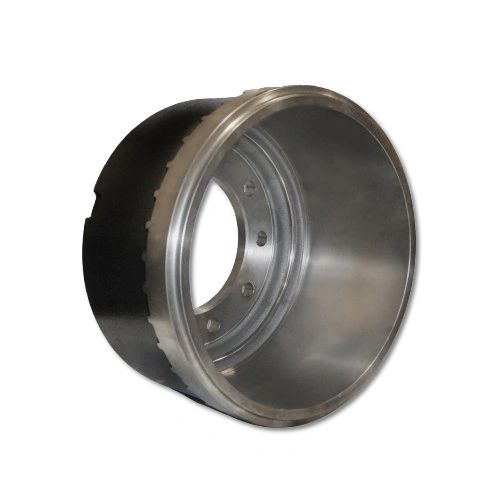

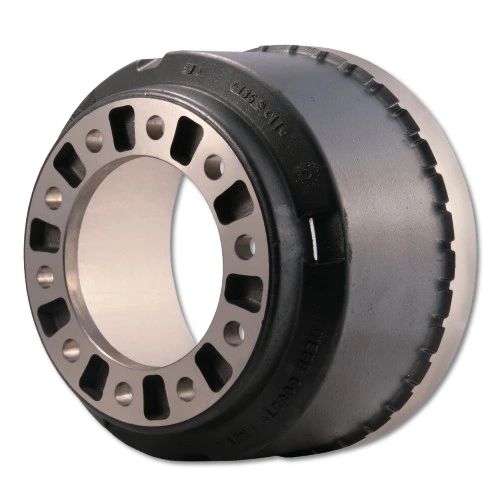

Webb:66827B brake drum
Type: Balanced outboard mount brake drum
Dimensions:
Brake surface diameter: 16.50 inches
Brake surface flat: 8.86 inches
Overall depth: 11.46 inches
Brake face thickness: 1.00 inch
Mounting:
Pilot diameter: 8.78 inches
Bolt circle diameter: 11.25 inches
Number of bolt holes: 10
Bolt hole size: 1.00 inch
Weight: Approximately 130 lbs
Special Features: Includes a special backplate thickness with an oil groove
