Description

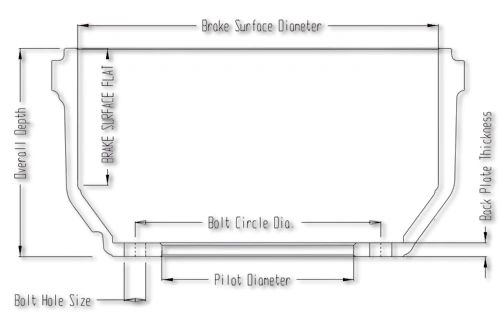

Brake Drum; 16.50 Surface Diameter and 7.50 Surface Flat; 10.82 Depth; Oil Groove.
Brake Surface Diameter: 16.50 inches
Brake Shoe Width: 7 inches
Mount Type: Outboard
Overall Depth: 10.82 inches
Bolt Circle Diameter: 11.25 inches
Bolt Hole Count: 10
Bolt Hole Size: 1.00 inch
Pilot Diameter: 8.78 inches
Maximum Wear Diameter: 16.62 inches
Weight: Approximately 117 lbs
Application: Typically used on drive axles of heavy-duty trucks
