Description

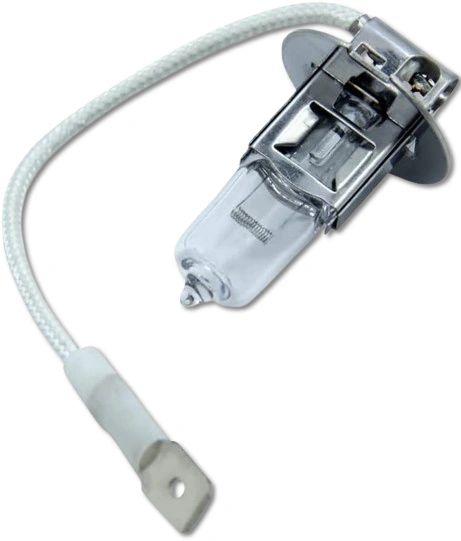

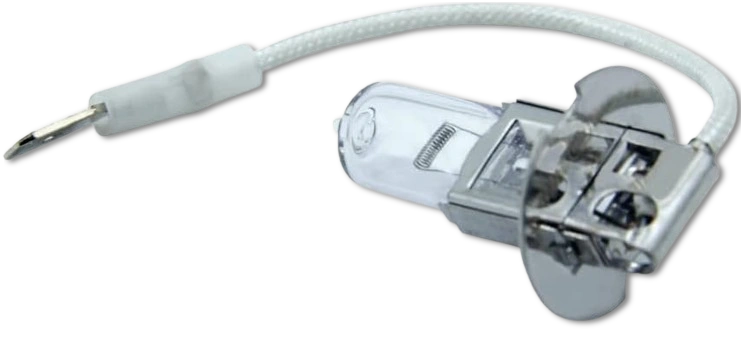

Tungsram H3-55 is a halogen automotive bulb commonly used in fog lights and auxiliary lighting. Here’s a detailed breakdown of its specifications and usage:+
Type: Halogen H3
Voltage: 12V (design voltage: 13.2V)
Wattage: 55W (design wattage: 68W)
Base: PK22s
Filament: C-6
Bulb Shape: T3 1/4
Glass Diameter: 11.43 mm (0.45 in)
Maximum Overall Length (MOL): 41.91 mm (1.65 in)
Light Center Length (LCL): 17.78 mm (0.70 in)
Luminous Output: 1450 lumens
Mean Spherical Candlepower (MSCP): 115
Rated Life: ~400 hours
Current Draw: 4.58 amps
RoHS Compliant: Yes
