Description

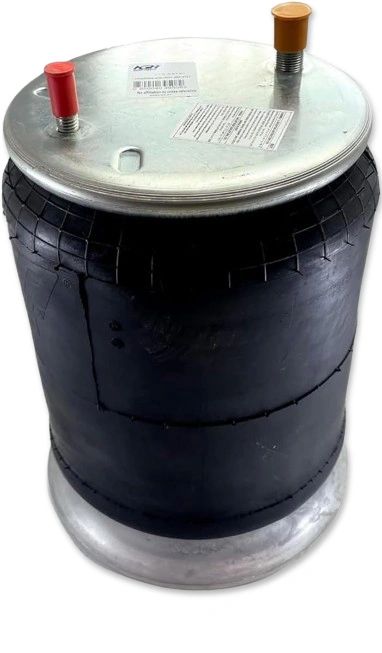

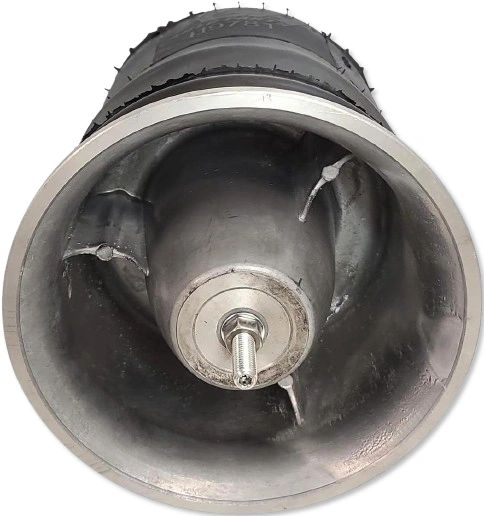

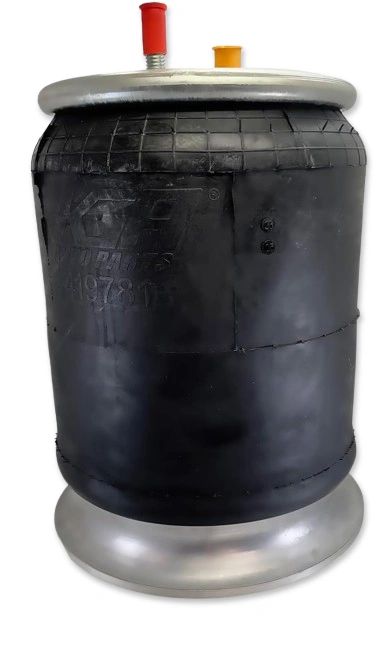

889781 Air Bag, Replaces Freightliner 16-1673-000 & Firestone W01-358-9781, Aluminum Base
Product Overview
Type: Rolling lobe / reversible sleeve air spring
Brand: TUFFLINE (also cross-referenced as Torque TR9781)
OEM Replacements:
Firestone: W01-358-9781, W01-377-8537, W01-377-8536
Freightliner: 681-320-0017, A16-14004-000, A16-17574-001, A16-17574-002
Goodyear: 1R12-603
Contitech: 910S-16A382
Triangle: AS-8382, AS-8999
Automann: AB1DF23-9781
TUFFLINE: TAS9781
Technical Specs
Extended Height: 23.00″
Compressed Height: 8.75″
Top Plate Width: 9.00″
Piston Width: 10.62″
Weight: ~15 lbs
Material Highlights:
4.5–5.0 mm thick rubber (exceeds OEM standards)
25% stronger 4140-grade steel studs
Composite pistons for durability
High leak test ratio after final assembly
