Description

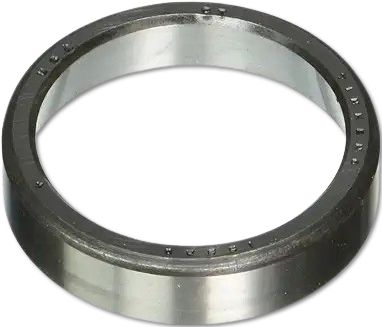

The Timken 15520 is a tapered roller bearing cup 21. This cup is designed to be paired with a cone (inner ring assembly) to form a complete tapered roller bearing, suitable for applications that support both radial and axial loads
Key Specifications
Type: Tapered Roller Bearing Cup (Single Cup)
Outer Diameter (OD): 2.2500 inches (57.15 mm)
Width: 0.5313 inches (13.495 mm)
Material: Chrome Steel
Finish: Uncoated
Weight: Approximately 0.17 lbs
Compatible Cones: 15578, 15579X, 15580, 15590, J15585 1
Design Units: Imperial
Backface “To Clear” Radius: 0.06 inches (1.52 mm)
Frontface Backing Diameter (Da): 2.11 inches (53.10 mm)
Backface Backing Diameter (Db): 2.01 inches (51.05 mm)
ISO Factors:
e: 0.35
Y: 1.73
Cg (Geometry Factor): 0.0577
