Description

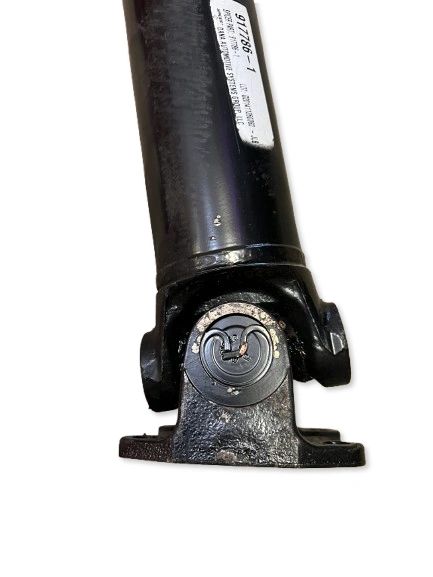

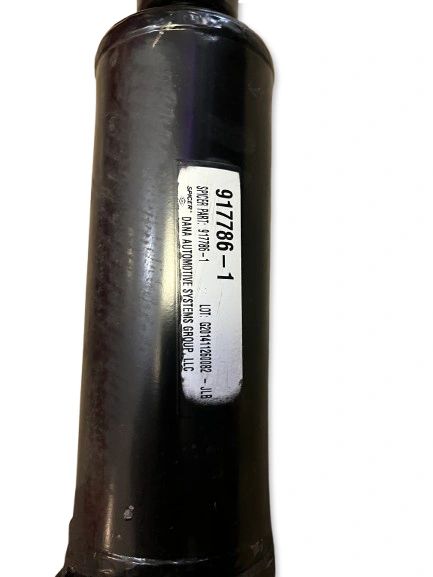

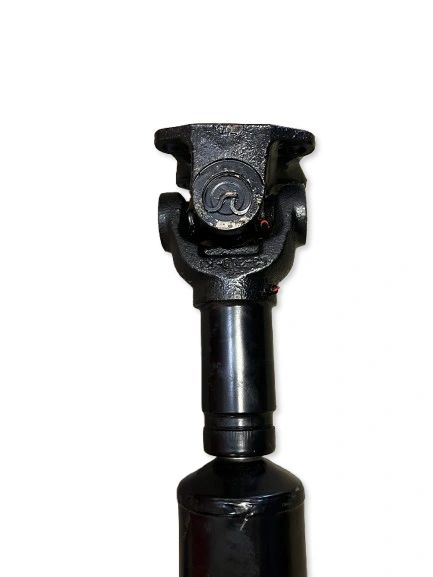

Spicer 917786-1 is an irrigation driveshaft assembly that includes several key components, primarily built around the Spicer 3-3-1601KX slip yoke, which is part of the 1480 series
Key Specifications:
Slip Yoke: 1480 series
Spline Diameter: 1.562″
Spline Count: 16
Centerline to End: 6.812″
Max Joint Angle: 21°
Universal Joint Bearing Diameter: 1.375″
Universal Joint Retaining Width: 4.438″
Centerline to Face of Plug: 1.312″
Included Components:
Lube Fitting: SPI-500174-1
Dust Cap Kit: SPI-D3J
Slip Yoke Plug: SPI-3-68-163
