Description
207S:207 Drawbar Eye, 208 Snap Ring, 416 Locknut

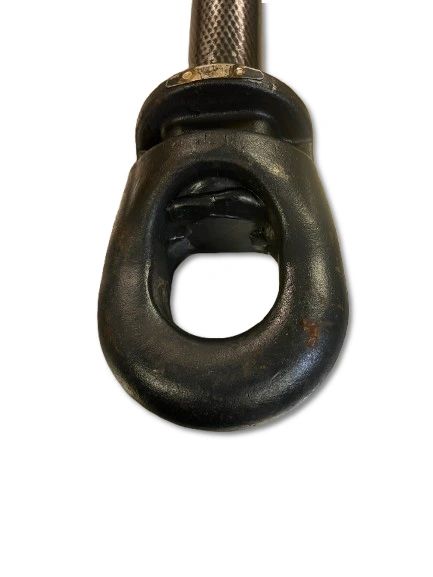

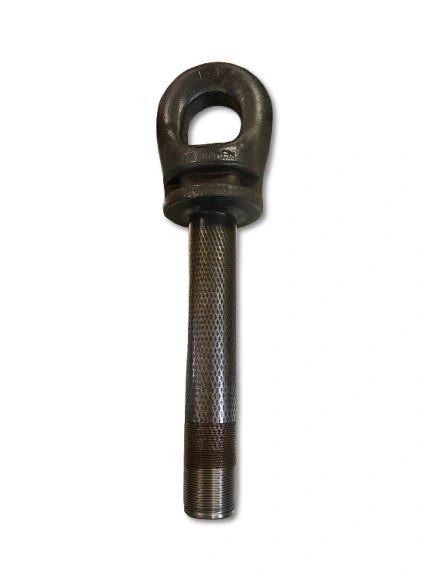

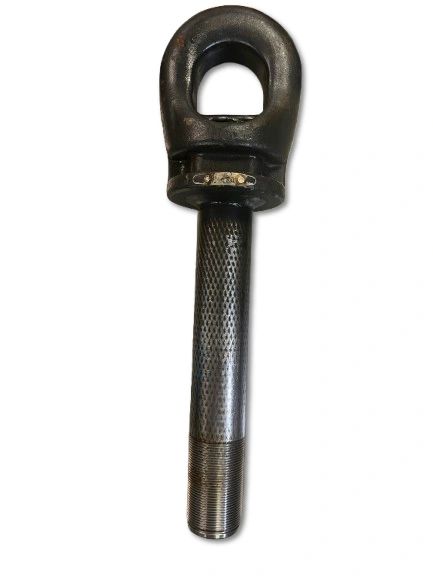

The part number Premier10000763 refers to the Premier 207S Swivel Drawbar Eye, a heavy-duty towing component manufactured by Premier Manufacturing
Product Overview
Model: 207S
Part Number: 10000763
Type: Swivel Drawbar Eye
Application: Used with Premier front-end housings for towing applications
Specifications
Inside Diameter (ID): 2-3/8 inches (60 mm)
Shaft Dimensions: 2 inches OD × 11-3/8 inches L
Maximum Gross Trailer Weight: 90,000 lbs (40,823 kg)
Maximum Tongue Weight: 2,500 lbs (1,134 kg)
