Description

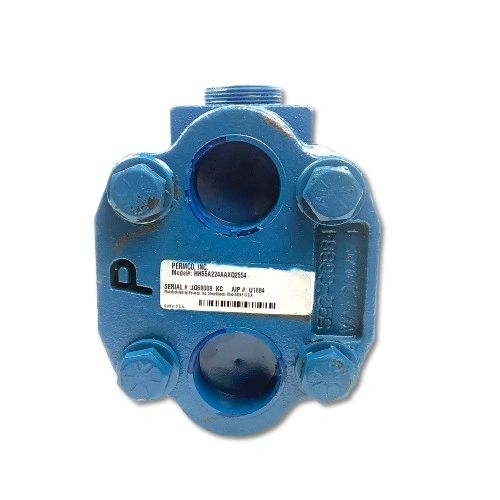

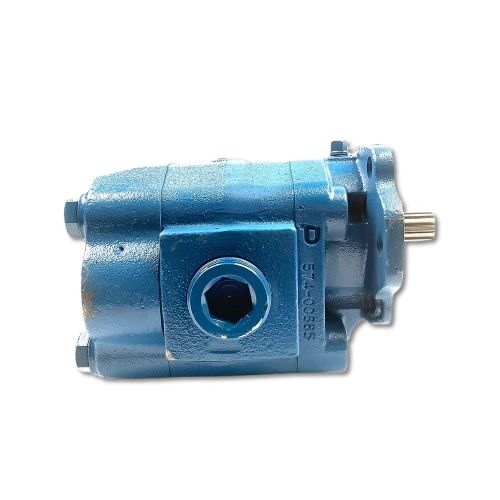

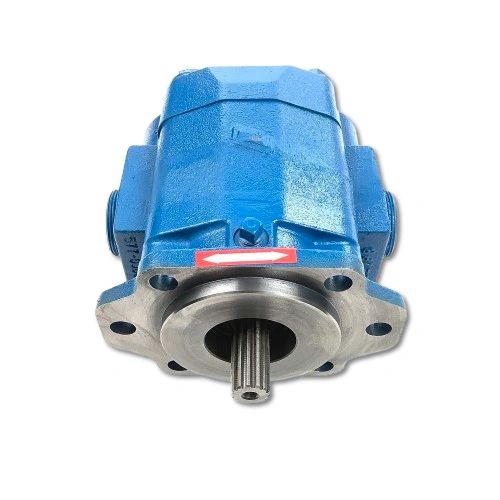

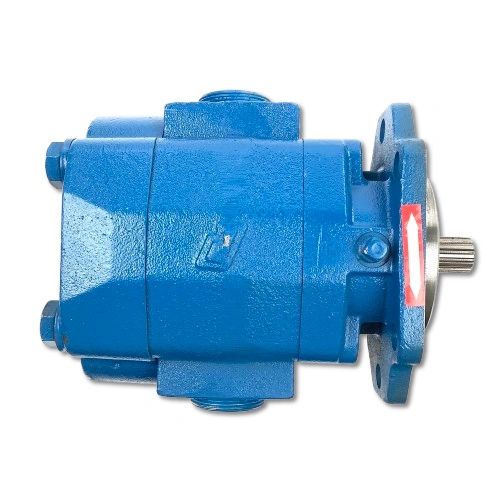

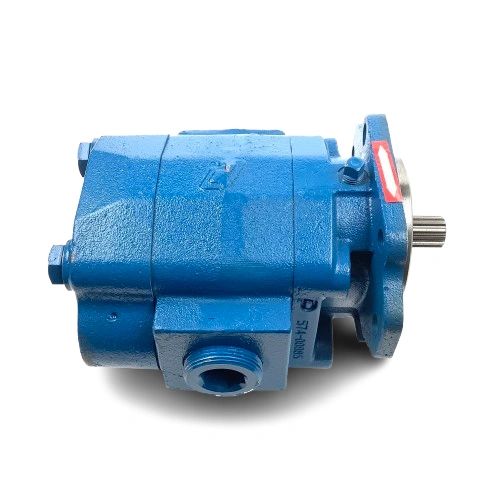

GEAR HYDRAULIC PUMP
Technical Specifications
Displacement: 6.43 cubic inches
Flow Rate: 27 GPM (Gallons Per Minute)
Gear Width: 2.50″
Max RPM: 1800
Max Pressure: 2500 PSI
Mounting Flange: SAE “B” 2 & 4 Bolt, 4.00″ Pilot
Ports:
Inlet: 1-1/4″ NPT
Outlet: 1-1/2″ NPT (Rear and Side)
Shaft: SAE “B”, 7/8″ Diameter, 13 Tooth Spline
Rotation: Bi-Rotational (can operate in both directions)
Dimensions:
A: 7.38″
B: 3.25″
C: 5.00″
