Description

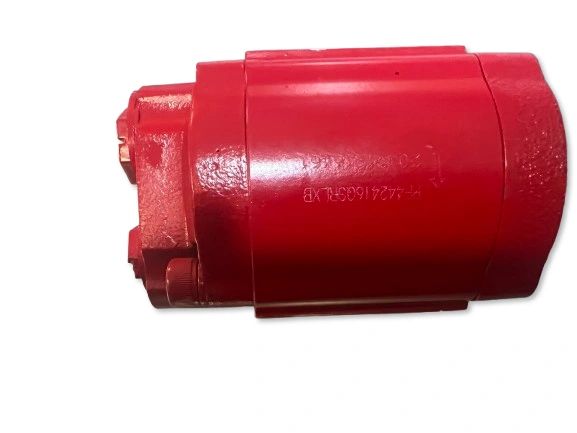

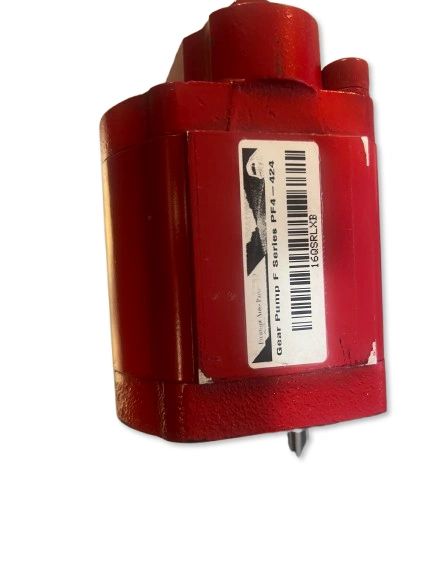

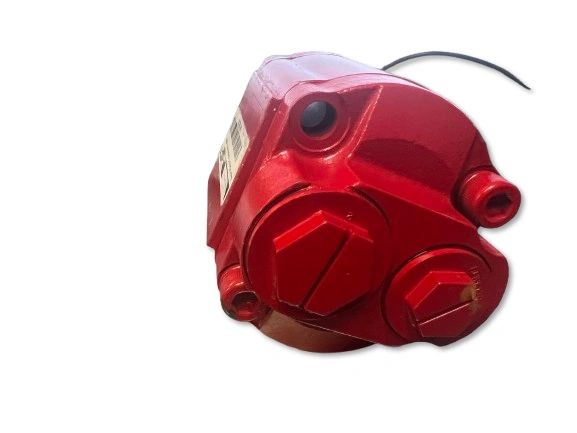

PF4-424-16QSRL refers to a Muncie PF Series Gear Pump, specifically designed for high-performance hydraulic applications
Product Overview
Model: PF4-424-16QSRL
Series: PF4 (part of Muncie’s PF Series)
Mounting: Direct mount with Q flange
Ports: Rear ports only
Displacement: Approximately 0.98 cu. in. per revolution
Max Pressure: Up to 3625 PSI
Max Speed: Up to 3000 RPM
Material: Extruded high-tensile aluminum housing

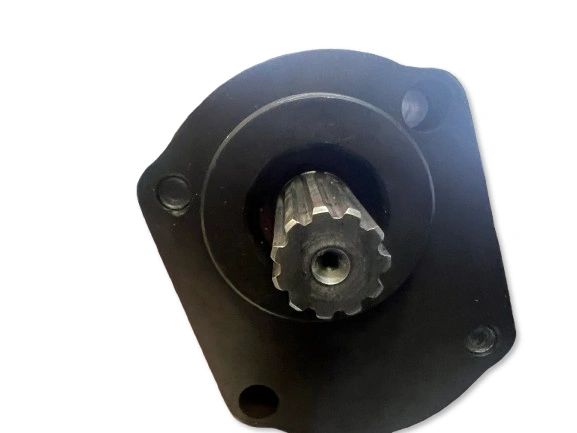

Shaft: Solid, one-piece for added strength
Seals: Buna N standard
Applications: Commonly used in Ford TorqShift® 4×4 applications Product Overview
Model: PF4-424-16QSRL
Series: PF4 (part of Muncie’s PF Series)
Mounting: Direct mount with Q flange
Ports: Rear ports only
Displacement: Approximately 0.98 cu. in. per revolution
Max Pressure: Up to 3625 PSI
Max Speed: Up to 3000 RPM
Material: Extruded high-tensile aluminum housing
Shaft: Solid, one-piece for added strength
Seals: Buna N standard
Applications: Commonly used in Ford TorqShift® 4×4 applications
