Description

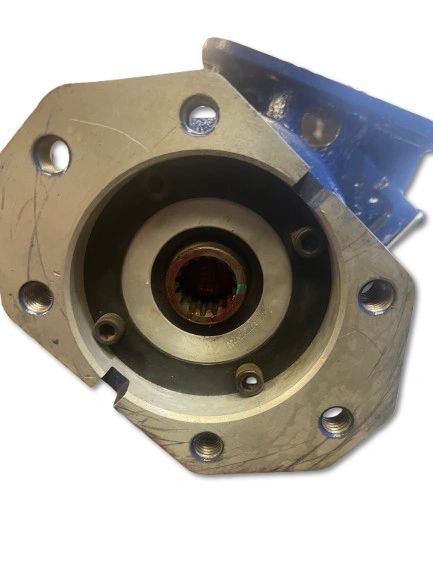

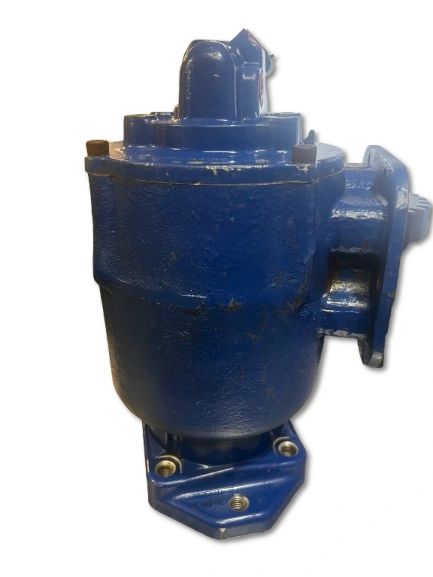

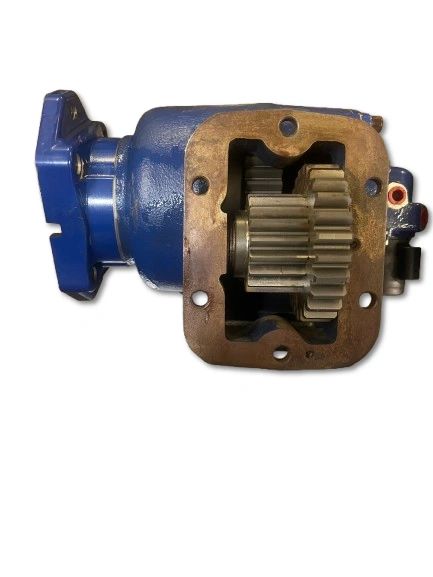

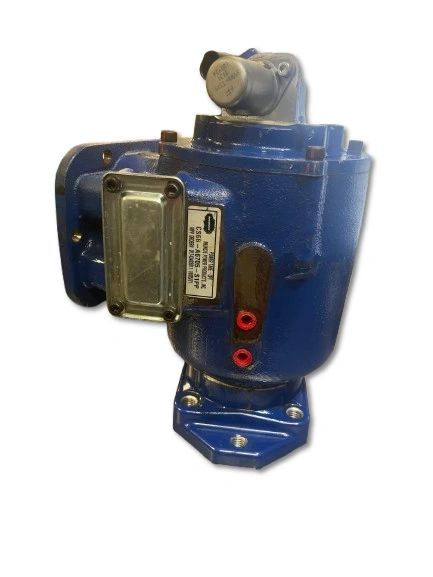

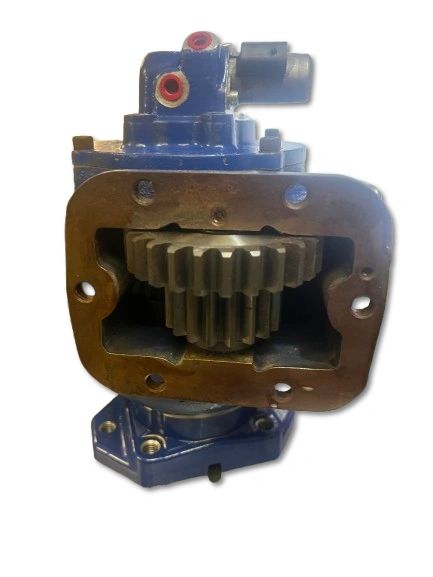

Muncie CS6B-A6705-S1PP is a Clutch Shift 6-Bolt Power Take-Off (PTO) unit from the CS6 Series
Specifications
Model: CS6B-A6705-S1PP
Mounting: 6-Bolt Standard Mount
Speed Ratio: 0.47:1
Shift Type: Electric
Output Type: SAE “BB” 1″ -15T shaft, SAE “B” 2- & 4-Bolt flange
Input Compatibility: Allison transmission (special gear)
Assembly Arrangement: Right Side Shaft
Special Feature: Pressure Lube Assembly
Speed Ratios Available in CS6 Series
0.33:1
0.44:1
0.47:1 ← (your model)
0.56:1
0.70:1
0.87:1
Mounting Type 6B – SAE 6-Bolt Standard Mount
Input Gear Code A67 – Allison 6.86P 20° PA Spur Gear
Speed Ratio 05 – 0.47:1
Shift Type S – Electric Shift
Assembly Arrangement 1 – Right Side Shaft, Low
Output Type P – SAE “BB” 1″ -15T Shaft, SAE “B” 2- & 4-Bolt Flange
Special Feature P – Pressure Lube
