Description

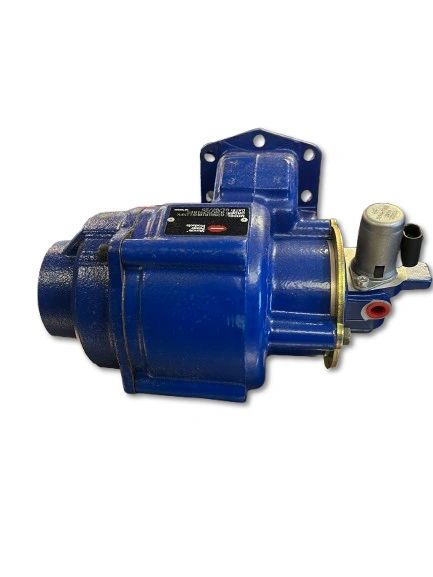

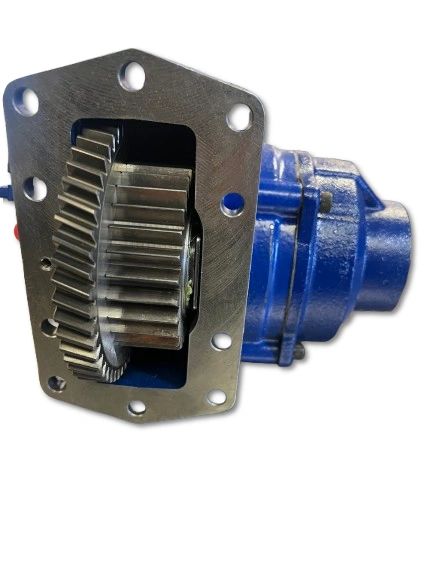

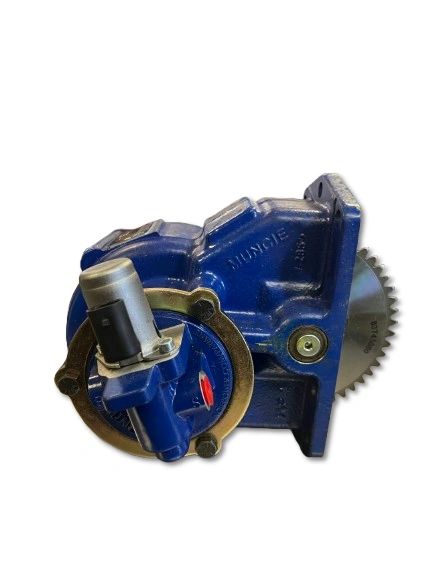

Muncie A20A1010H11XPX is part of the A20 Series of medium-duty, clutch-shift Power Take-Off (PTO) units designed for Allison 3000 and 4000 Series transmissions. Here’s a breakdown of what the model number indicates and its key features:

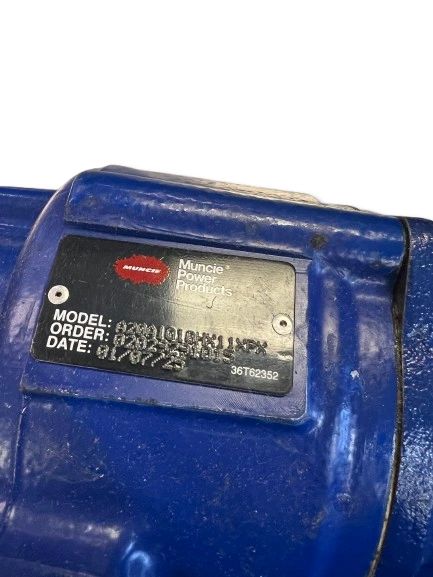

Model Breakdown: A20A1010H11XPX
A20: Series name – medium-duty, 10-bolt clutch shift PTO.
A10: Transmission gear – Allison 10.16P RH.
10: Internal gear ratio – 0.97:1.
H: Shift type – 12V Electric/Hydraulic Integral.
11: Assembly arrangement – Right Side Shaft Low.
XPX: Output type and special features – typically includes a standard hose kit and flange configuration.
⚙️ Key Features
Torque Rating: Up to 415 lbs.ft. (continuous/intermittent).
Rotatable Pump Flange: Offers 30 unique positions for optimal clearance and flexibility.
Installation Ease:
Flange can be adjusted without disturbing seals.
Rear cover rotates 360°.
Extended mounting fasteners.
Durability Enhancements:
Tapered roller bearings.
Increased output shaft diameter.
Reduced leak paths.
Noise-reducing gear design.
Compatibility: Designed specifically for Allison 3000/4000 transmissions
