Description

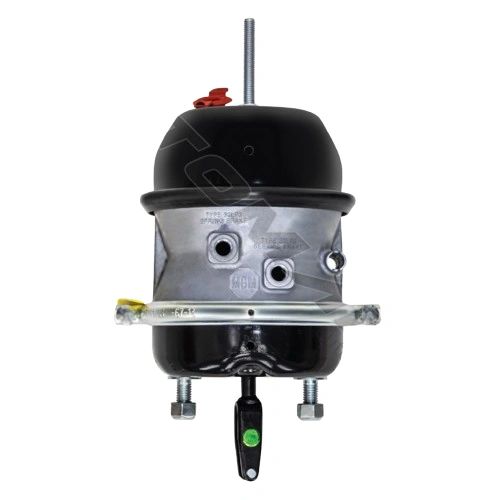

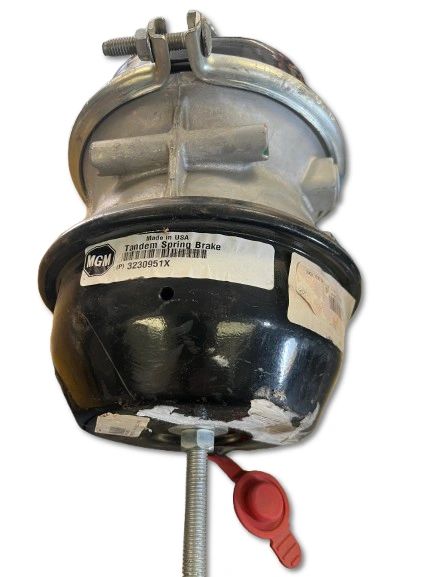

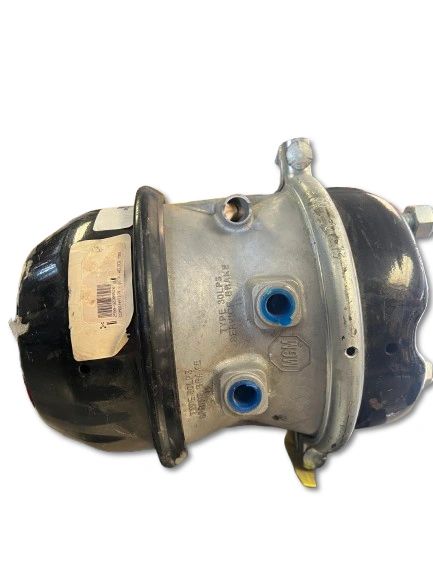

MGM Brakes 3030 Long Stroke Spring Brake Chamber with 2.25″ Push Rod
Specifications
Service Size Type: 30
Chamber Type: Spring combination
Stroke Type: Long Stroke
Stroke Length: 3.00 inches
Push Rod Length: 2.25 inches
Clevis Type: Welded (included)
Mounting Stud Spacing: 4.75 inches (center to center)
Mounting Stud Length: 1.54 inches
Mounting Stud Threads: 5/8 in-11
Port Size: 3/8 in-18
Piggyback Length: 7.61 inches
Service Housing Outer Diameter: 8.32 inches
Chamber Housing Length: 9.99 inches
Weight: 20.01 lbs
Diaphragm Material: Nylon Reinforced Neoprene
Brake Type: Drum
