Description

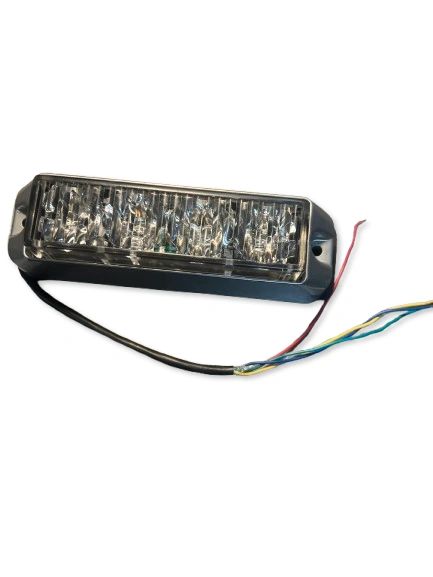

ECCO Directional LED: Rectangular Surface (3910R)
Overview
Model: ECCO 3910 Series, 3910R (Red)
Shape & Mounting: Rounded rectangular, 2‑bolt surface mount
Specifications

LED Count: 56 high-intensity red LEDs [eccoesg.com], [matsucustoms.com]
Flash Patterns: 15 selectable patterns [eccoesg.com], [matsucustoms.com]
Voltage Requirement: 12 V DC [eccoesg.com], [matsucustoms.com]
Current Draw: Approximately 0.7–0.8 A [eccoesg.com], [matsucustoms.com], [trucklightparts.com]
Dimensions: 5″ wide × 3.2″ high × 0.34″ deep (≈8.5 cm × 5.1 cm × 0.86 cm) [eccoesg.com], [matsucustoms.com]
Weight: ~0.25 lb (≈0.11 kg)
Durability & Approvals
Ingress Protection: IP69K (protected against high-temperature, high-pressure wash-downs) [eccoesg.com], [trucklightparts.com]
Certifications: RoHS-compliant and meets SAE Class I standards
