Description
Eaton FD89-1002-06-06 is a flush-face hydraulic quick disconnect coupling from the FD89 Series, designed for applications requiring no-spill performance and global interchangeability
Product Overview
Series: FD89 Flush Face Couplings
Part Number: FD89-1002-06-06

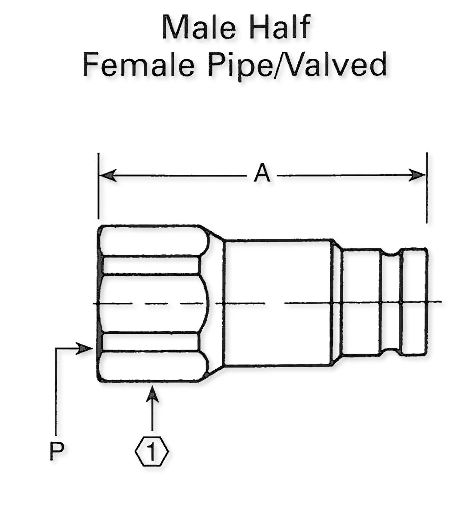

Type: Male Half, Valved
Thread Size: 3/8-18 NPT
Coupling Size: -06
Connection Type: Push-to-connect latching
Locking Mechanism: Safety sleeve lock
Valving: Dual flush-face valving
Interchangeability: Compatible with HTMA couplings
Standard Compliance: Meets ISO 16028 dimensional requirements
Material & Seals
Body Material: High-resistance carbon steel with zinc trivalent plating
Seal Material: Buna-N (standard)
Optional Seals: Teflon for anti-extrusion in high-pressure applications
Performance
Max Operating Pressure: 300 bar (4,350 psi)
Min Burst Pressure: 1,200 bar (17,400 psi)
Rated Flow: Approx. 23 L/min (6.1 GPM) for 3/8” size
Connection Force: ~173 N (38.9 lbs)
