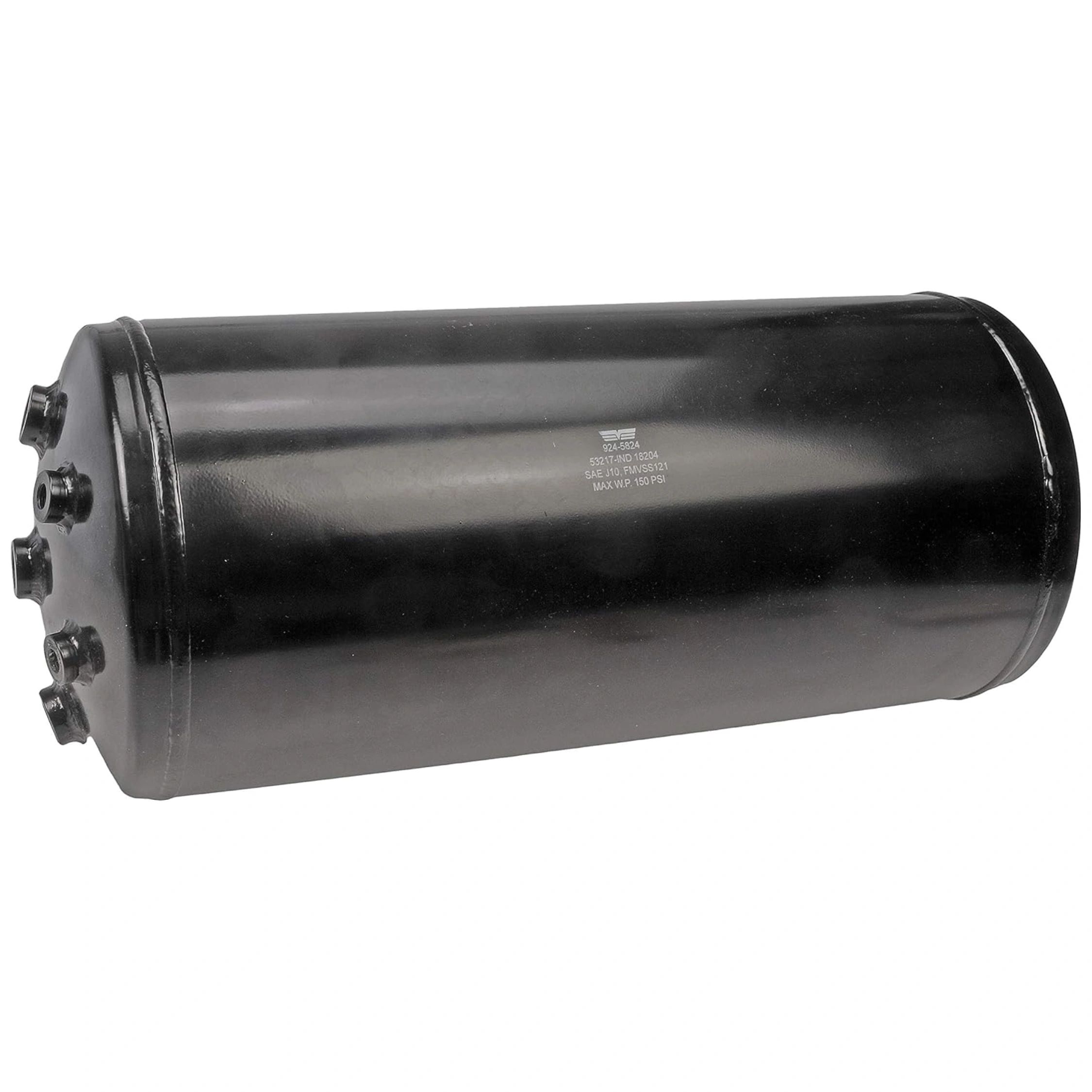

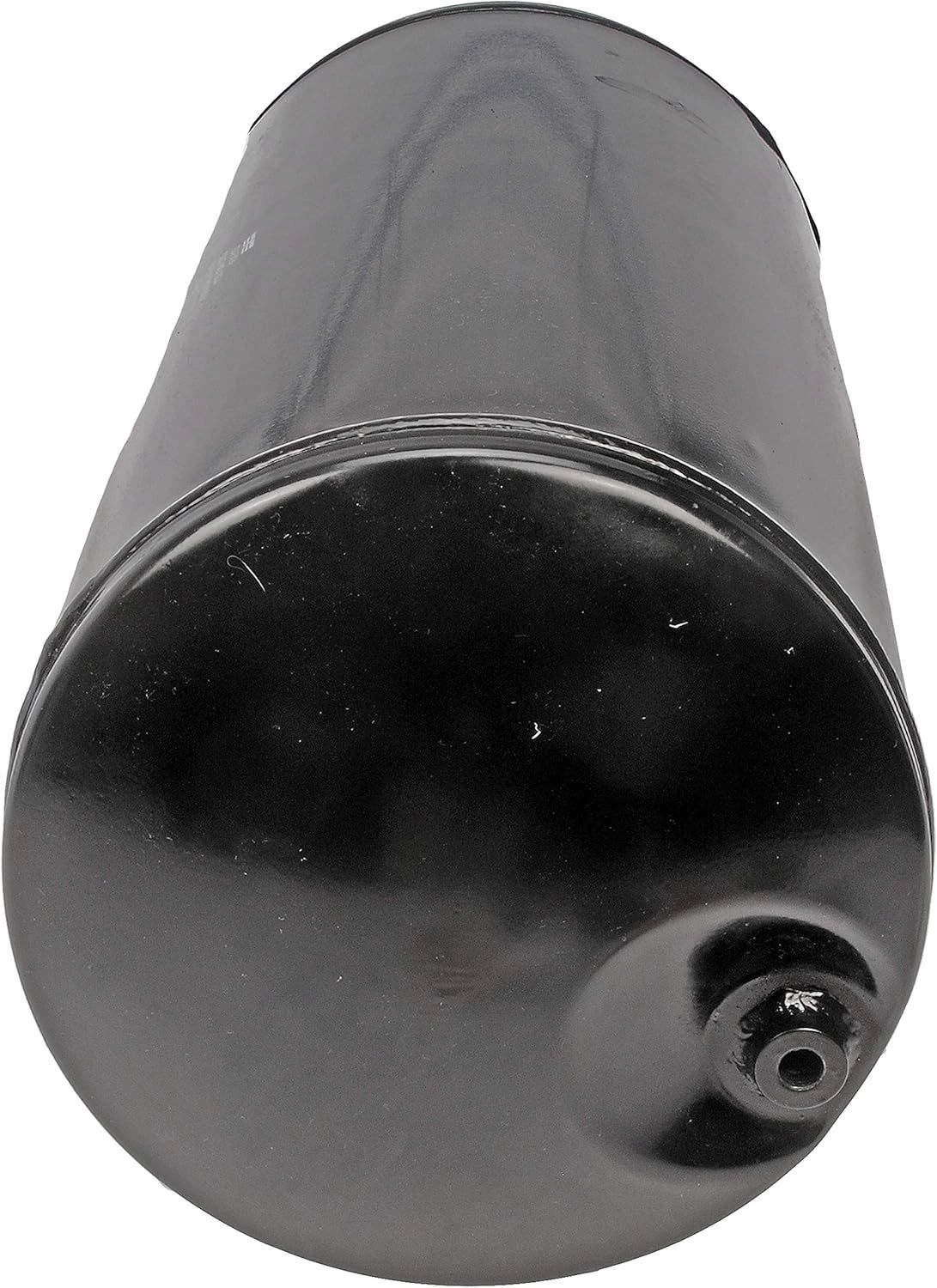

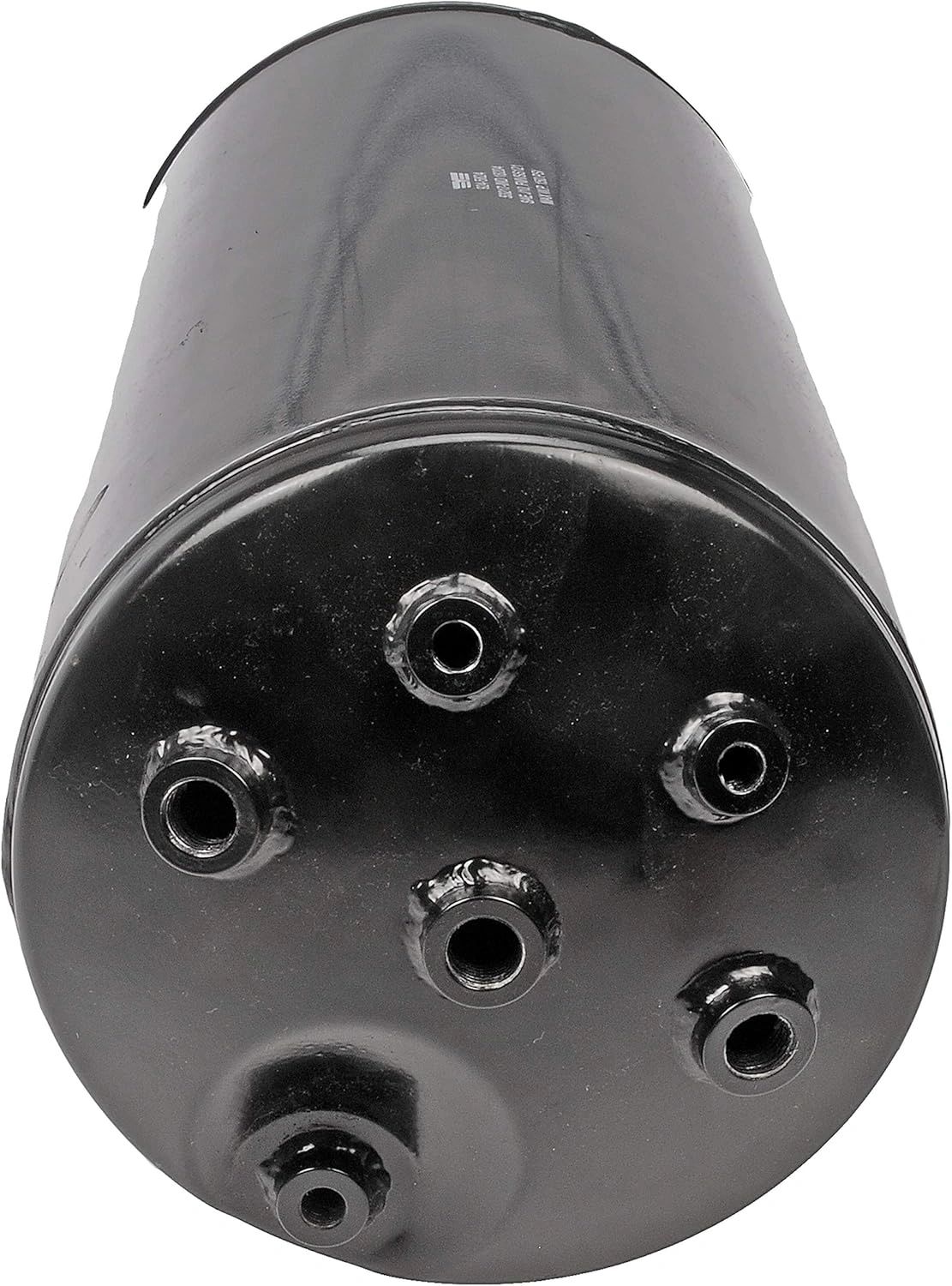

Dorman 924-5824 – Air Brake Reservoir / Air Tank Assembly
Designed to replace corroded or leaking OE air tanks in Volvo trucks (2001–2018). Matches original port configuration and dimensions for direct fit.

OEM Part Number ‎172.5916; 8075916
Air Tank Type: Tractor
Capacity: 27 Lt
Color: Black
Diameter: 10 in
Diameter (B): 10 in
Length: 23.3 in
Length (A): 23.3 in
Material: Carbon Steel
Material Thickness: 0.13 in
Maximum Working Pressure: 150 PSI
Mounting Hardware Included: No
Mounting Hole Quantity: 0
Mounting Type: Strap On
Number of Chambers: 1
Port Quantity: 7
Port Thread Pitch: 1.5 mm; 1.5 mm
Selling Package Quantity UOM: Piece
Tank Chamber Quantity: 1
Thread Size: 1/4 in; 3/8 in; 22 m; 22 m; 22 m; 1/4 in; 1/2 in; 1/2 in; 22 m
Threaded Mounting Bracket Included: No
Valve Included: No
Volume: 27 L

Additional information

Weight 25 lbs
Dimensions 23.3 × 10 × 10 in
