Description

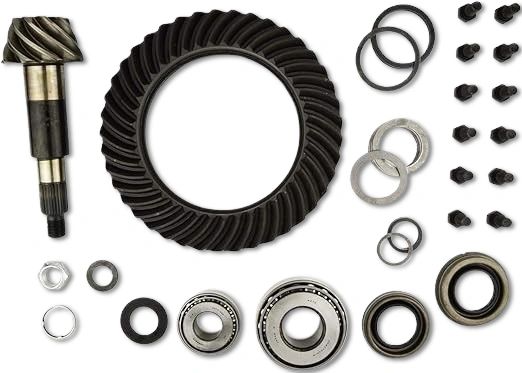

708127-2 refers to a Spicer Differential Ring and Pinion Kit designed for the Dana 70 axle
Specifications
Axle Model: Dana 70
Gear Ratio: 4.56
Ring Gear Teeth Count: 41
Pinion Gear Teeth Count: 9
Ring Gear Diameter: 10.5 inches
Pinion Shaft Diameter: 1.75 inches
Pinion Spline Count: 29
Ring Gear Bolt Quantity: 12
Ring Gear Bolt Thread: 0.500-20
Carrier Breaks: 4.56 and up
Cover Bolt Quantity: 10
Weight: 31.09 lbs
Location on Vehicle: Rear
Axle Type: Full Floating
Includes: Ring gear, pinion gear, pinion nut, and installation kit
Country of Origin: USA
Common Applications
The Dana 70 axle, and by extension the 708127-2 gear set, is typically found in:
Dodge Ram 2500/3500 (especially older models)
Ford F-250/F-350 Super Duty
Chevrolet/GMC 2500HD and 3500HD
Commercial trucks and vans
Motorhomes and RVs
Utility and service vehicles
