Description

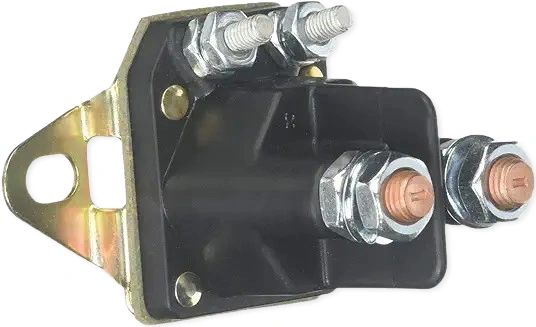

Cole Hersee 24612-03-BX
General Overview
A 12 V intermittent-duty SPST (single-pole, single-throw) starter solenoid relay with a corrosion-resistant nylon (plastic) body—ideal for applications like lawn tractors, golf carts, sweepers, and other small engine starts.
Electrical & Performance Specs
Coil voltage: 12 V DC
Coil impedance: 3.8 Ω [littelfuse.com], [littelfuse.com]
Circuit configuration: SPST normally open (NO) [littelfuse.com], [littelfuse.com]
Continuous current rating: 200 A [littelfuse.com], [littelfuse.com]
Intermittent current rating: 300 A (5 s on, 5 min off; max ON time 20 s) [littelfuse.com], [littelfuse.com]
Maximum operating voltage: 14 V DC
Electrical & Performance Specs
Coil voltage: 12 V DC
Coil impedance: 3.8 Ω [littelfuse.com], [littelfuse.com]
Circuit configuration: SPST normally open (NO) [littelfuse.com], [littelfuse.com]
Continuous current rating: 200 A [littelfuse.com], [littelfuse.com]
Intermittent current rating: 300 A (5 s on, 5 min off; max ON time 20 s) [littelfuse.com],
Maximum operating voltage: 14 V DC
Bracket: L-style with slots
Opening: 9/32″ × 1/2″ (7.1 × 12.7 mm)
Slot centers: 2–3/16″ (55.5 mm)
Terminals:
Copper power terminals: 5/16″‑24 studs
Coil terminals: #10‑32 with #12 lock washer and .250″ quick-connect blades
Terminals:
Contacts: Copper
Cycle life: Minimum 10,000 cycles
Environmental Conditions
Operating temperature: –40 °C to +59 °C (–40 °F to +140 °F)
