Description

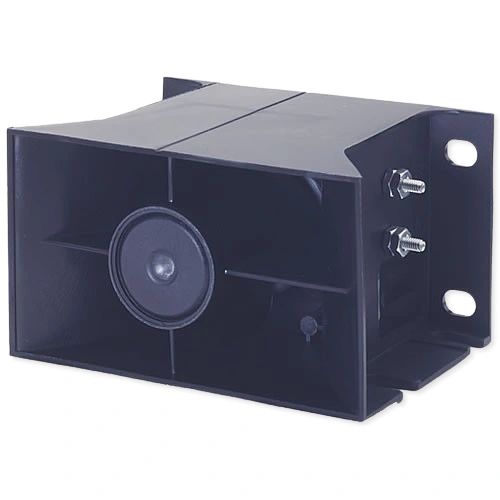

BAC-ALARM MODEL 360
Technical Specifications
Model/Part Number: 360 BAC-A-LARM
NSN (National Stock Number): 6350-01-215-6563
Dimensions:
Length: 127.0 mm
Width: 95.3 mm
Height: 77.7 mm
Mounting:
Universal mount (vertical or horizontal)
8 mounting holes (7.9 mm to 11.1 mm diameter)
Voltage Range: 6V to 36V DC
Frequency: 1140 Hz nominal
Sound Level: 107 dB at 28V DC
Operating Temperature Range: -40°C to +85°C
Material: Heat-resistant glass-reinforced nylon
Output Rate: 1 pulse per second
Weight: Approximately 1 lb. 8 oz.
SAE Class: B
End Application: Commonly used in wheeled tractors and other heavy equipment.
