Description

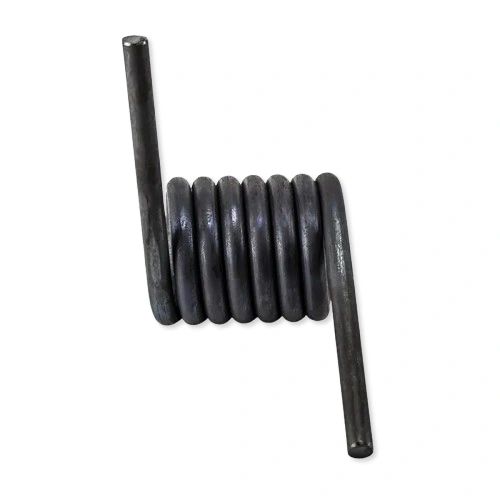

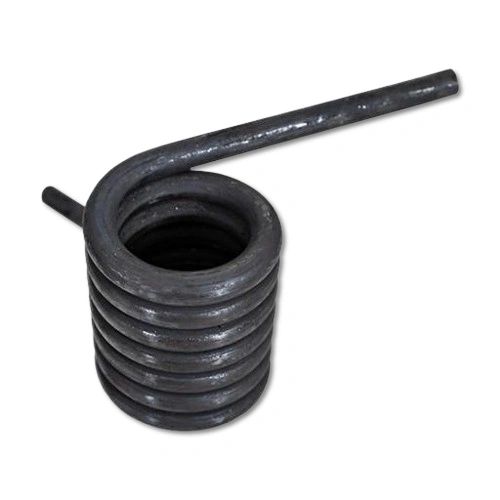

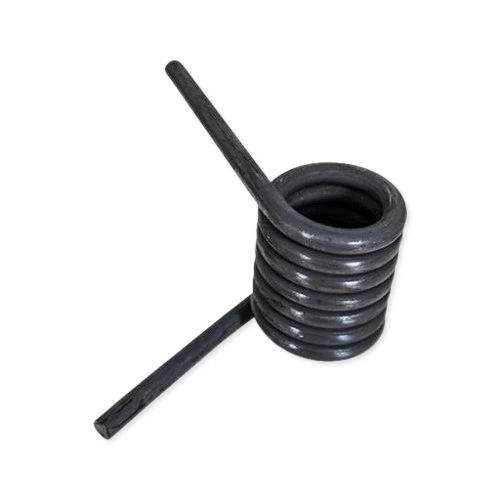

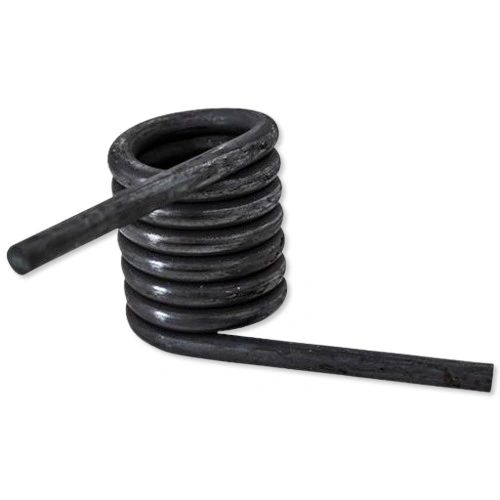

573.RS2879L – Torsion Ramp Spring LH
Product Specifications:
Type: Left-hand torsion ramp spring
Spring Rate: 21–23 in-lbs per degree
[Left Hand…. #3002879]
Inside Diameter (I.D.): 1.88″
Coil Diameter: 0.48″
Number of Coils: 6.833
Length: 3.75″ ± 0.06″
Max Deflection: 74°
Finish: Plain steel
Common Uses: Heavy-duty trailer ramps, especially where manual deployment is required
