Description

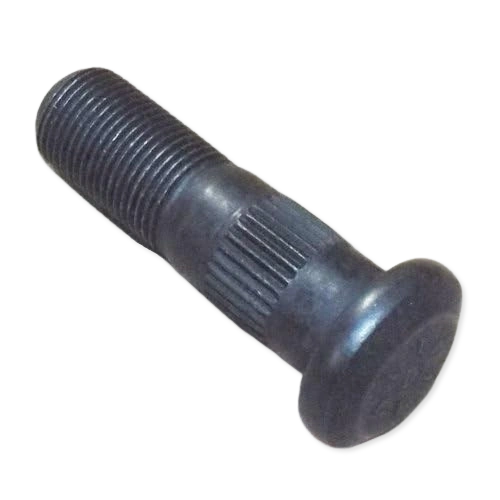

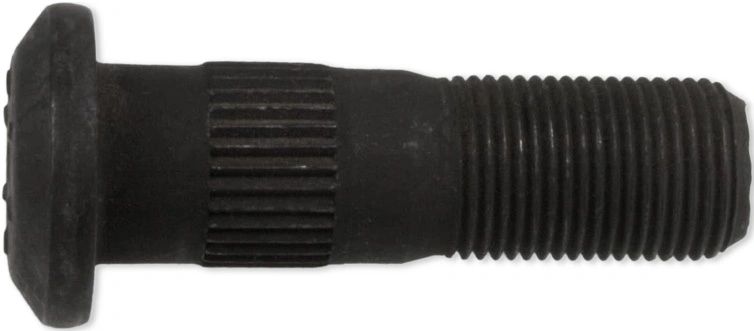

wheel stud is a serrated, right-hand thread stud commonly used in heavy-duty truck applications, particularly with Budd wheels.
Specifications:
Thread Size: 3/4″-16 UNF-2A (Right-Hand)
Thread Length: 1.00 in.
Thread Diameter: 0.75 in.
Body Diameter: 0.808 in. / 0.786 in.
Body Length: 1.235 in.
Overall Length (Under Head): 2 5/8 in. (≈ 2.630 in.)
Serration Diameter: 0.820 in.
Serration Length: 0.50 in.
Head Style: Round
Head Diameter: 1.28 in.
Head Thickness: 0.31 in.
Drum Shoulder Diameter: 0.808 in.
Drum Shoulder Length: 0.315 in.
Grade: 8 (High strength)
Type: Headed with drum shoulder
Cross References:
Budd 90513
Meritor 20-X-1810
Euclid E-5870R
Automann 201.6289R
Spicer 501124R
BWP M1208
