Description

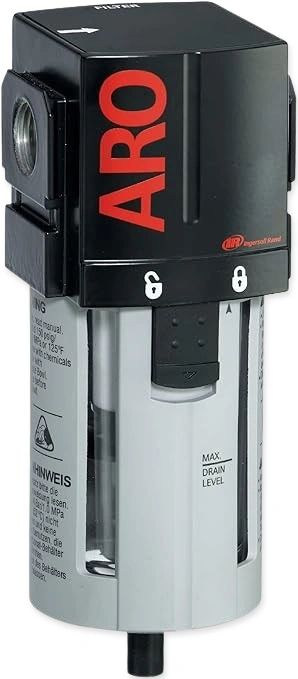

ARO F35341-410 is a compressed air particulate filter from the ARO-Flo 2000 Series, designed to remove water, dirt, oil aerosols, and other contaminants from compressed air systems
Key Specifications

Model: F35341-410
Series: ARO-Flo 2000
Filter Type: Particulate
Port Size: 1/2 inch NPT
Filter Rating: 5 micron
Maximum Flow Rate: 197 SCFM
Maximum Operating Pressure: 250 PSI
Operating Temperature Range: 23°F to 175°F
Filter Bowl Capacity: 2.4 oz
Drain Type: Manual
Filter Bowl Material: Aluminum with sight glass
Body Material: Aluminum
Filter Element Material: Polyethylene
Seal Material: Nitrile
Dimensions: Approx. 2.76″ W x 7.05″ H
Weight: ~1.7 lbs
Country of Origin:
High Flow Performance: Maintains peak tool performance with minimal pressure loss.
Low Leak Rates: Ensures efficient operation by minimizing air waste.
Modular Design: Easily integrates with other FRL components (Filters, Regulators, Lubricators).
Durable Construction: Robust aluminum body and metal bowl with sight glass for durability and visibility.
Customizable Options: Compatible with modular spacer kits and optional accessories like automatic drains and coalescing filters.
