Description

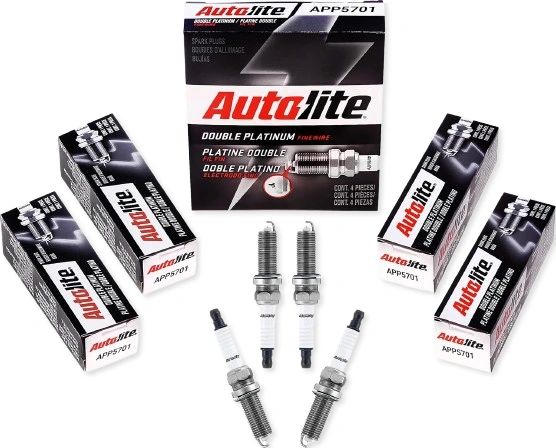

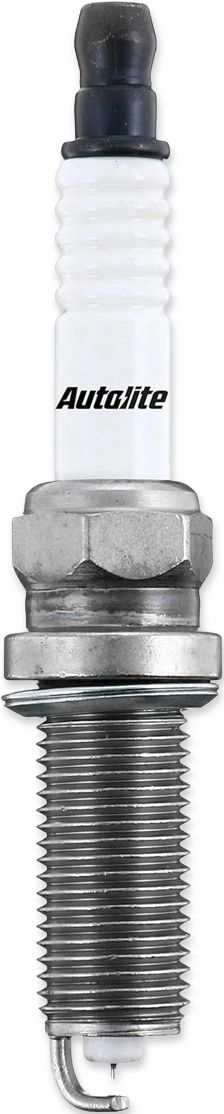

Autolite APP5701 Double Platinum Spark Plug
Spark Plug
Autolite APP5701 Double Platinum Spark Plug is a high-performance spark plug designed for durability and efficiency, especially in distributor-less ignition system (DIS) engines.
Specifications
Part Number: APP5701
Weight: 0.09 lbs
Resistor Type: Yes (Approx. 4000 Ohms)
Center Electrode Tip Material: Platinum
Center Electrode Core Material: Copper
Ground Electrode Core Material: Nickel
Ground Electrode Tip Material: Platinum
Ground Electrode Tip Design: Taper Cut
Ground Configuration: Single
Center Electrode Design: Standard
Insulator Material: High Alumina Ceramic
Insulator Tip Projection: Mid Projection
Seat Type: Flat
Thread Size: M12-1.25
Thread Reach: 1.043 in (approx. 35.5 mm)
Hex Size: 16 mm (5/8 inch)
Pre-Gap Size: 1.016 mm (0.040 inch)
Electrical Terminal Type: Non-Removable Nut
Washer Included: Yes
Heat Range: 12
Indexed: No
CHRYSLER OESP225 755ABGENERAL MOTORS CORP.88901010
